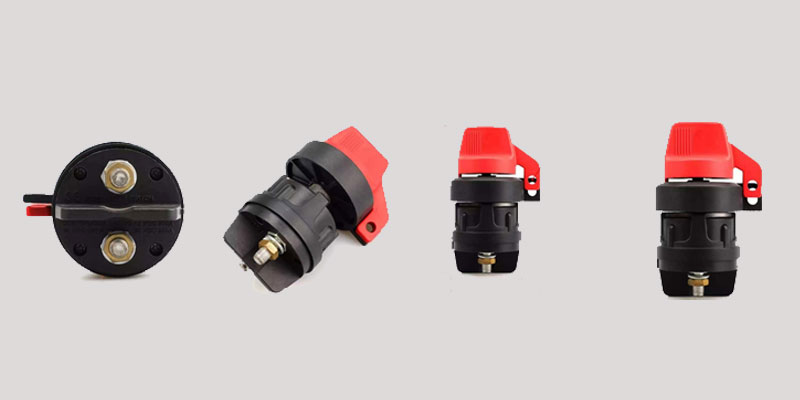

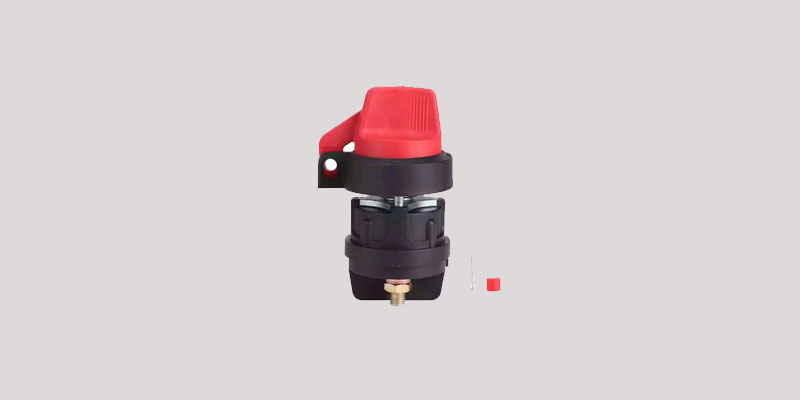

Battery disconnects are installed in an electrical system allowing the operator to completely disconnect electrical current running through a vehicle or piece of equipment. Being able to isolate the flow of electricity has many safety, security, and cost saving benefits.
| SL No | Description | Parameters |
|---|---|---|
| 1 | No of Position | 2-ON/OFF |
| 2 | Rated current | 200A |
| 3 | Rated Voltage | 24V DC |
| 4 | Operating Voltage | 12V-36V |
| 5 | Max Withstanding Current | 500A |
| 6 | Locking | Yes |
| 7 | Material | Plastic + Copper |
| 8 | Operating lifetime | >10000 |
| 9 | IP Rating | IP67 |

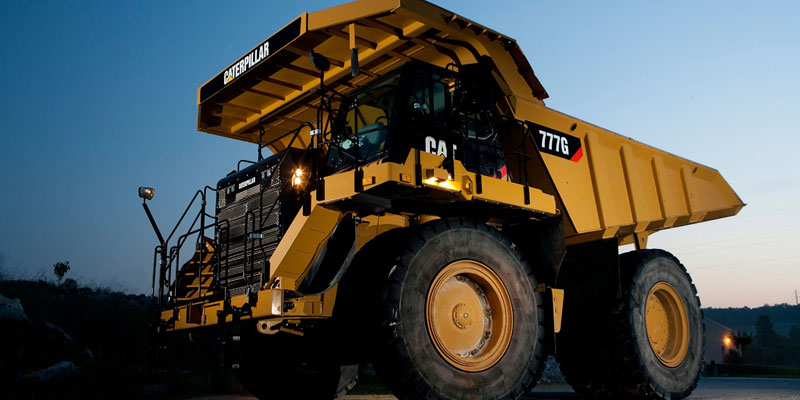

| 10 | Application | Excavator, Dumper,Dozer,Tipper |
